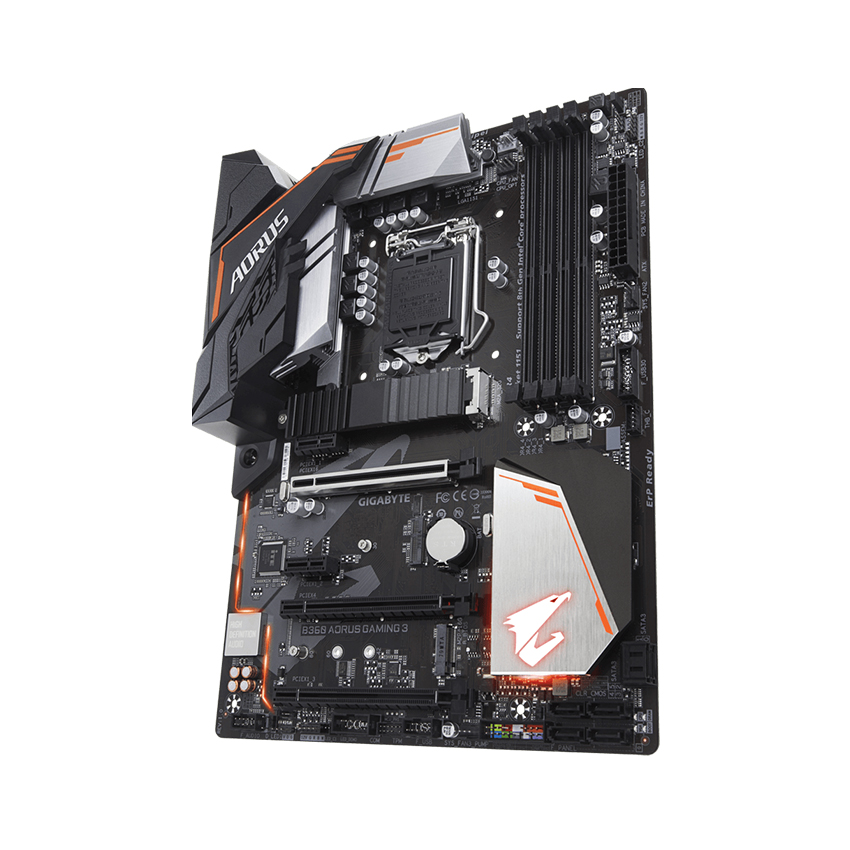

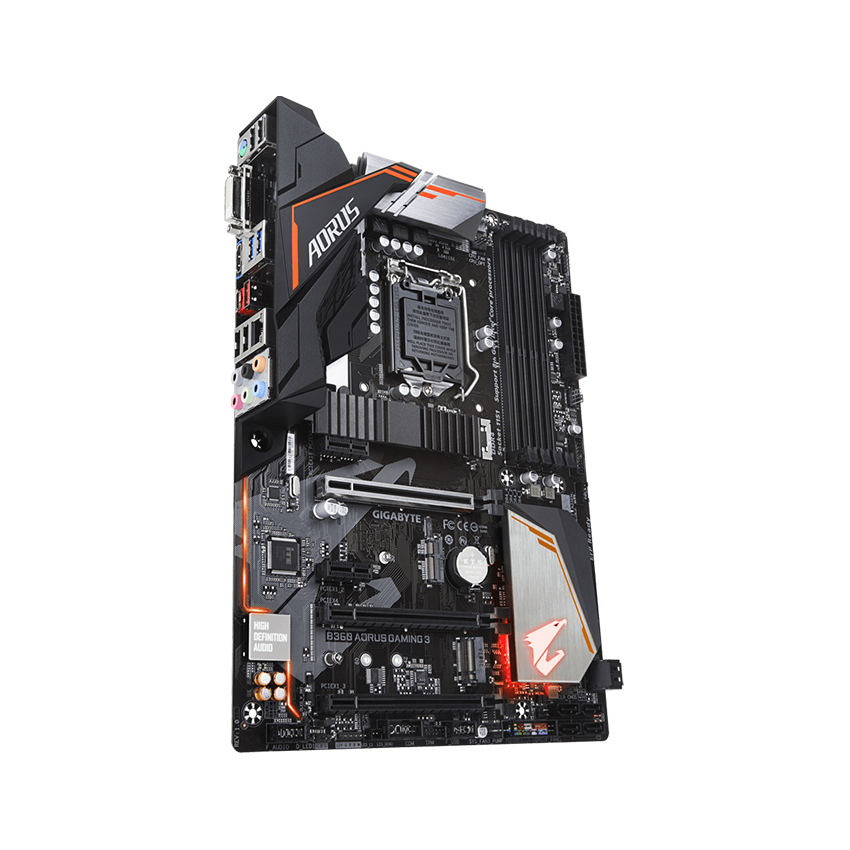

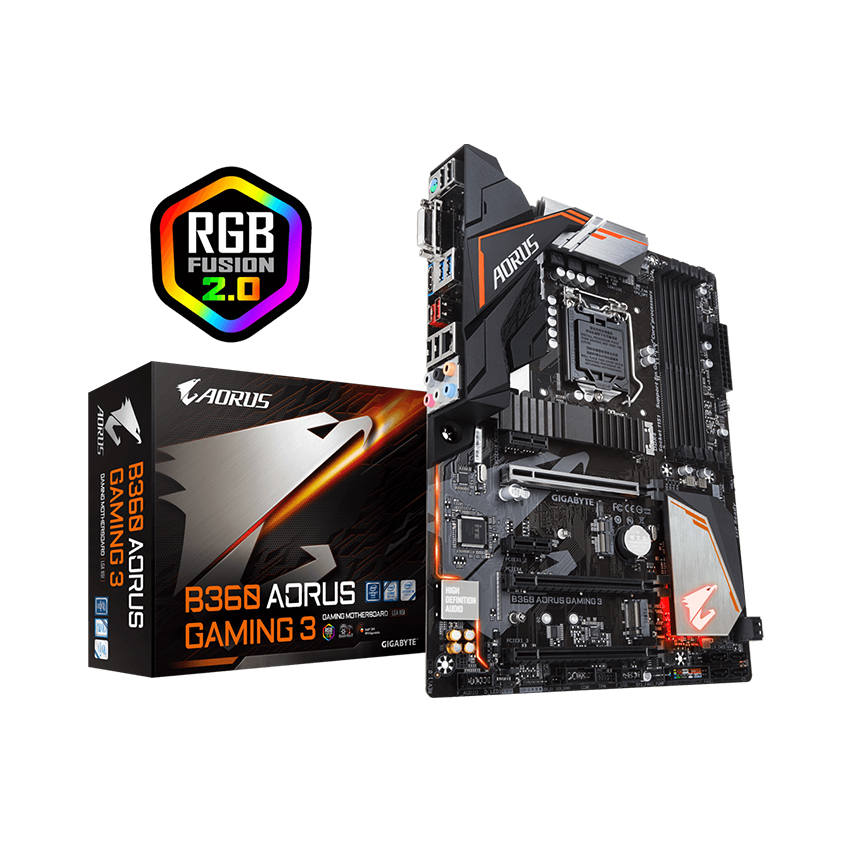

Name: Mainboard Gigabyte B360 Aorus Gaming 3 (Intel B360/Socket 1151-v2/4 khe RAM DDR4)
Brand: Gigabyte
SKU: MBGI027

Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Chipset Intel® B360 Express Chipset
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Xem thêm > Thu gọn

Bảo hành:

36 tháng

Giá:

Liên hệ

Đặt mua ngay Miễn phí giao hàng, thanh toán linh hoạt

Trợ giúp

Hướng dẫn mua hàng
Hướng dẫn thanh toán
Chính sách đổi trả hàng
Chính sách mua trả góp
Chính sách bảo hành
Chính sách giao hàng

Customer Is Very Important Person - CIVIP

Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.

Tên gọi	B360 AORUS GAMING 3
CPU hỗ trợ	Intel® Socket 1151 for 9th, 8th Generation Core™ Processors
Chipset / Socket	Intel® B360
Bộ nhớ (RAM)	4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory • Dual Channel Memory Architecture • Supports Intel® Extreme Memory Profile (XMP)
Công nghệ đa GPU	AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16) • 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_3) 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2) • (1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) * The CNVi connector shares bandwidth with the F_USB2 header. When a WIFI module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.
LAN / Wireless	Intel® GbE LAN chip (10/100/1000 Mbit)
Âm thanh	Realtek® ALC892 codec
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB (RGBW) LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper

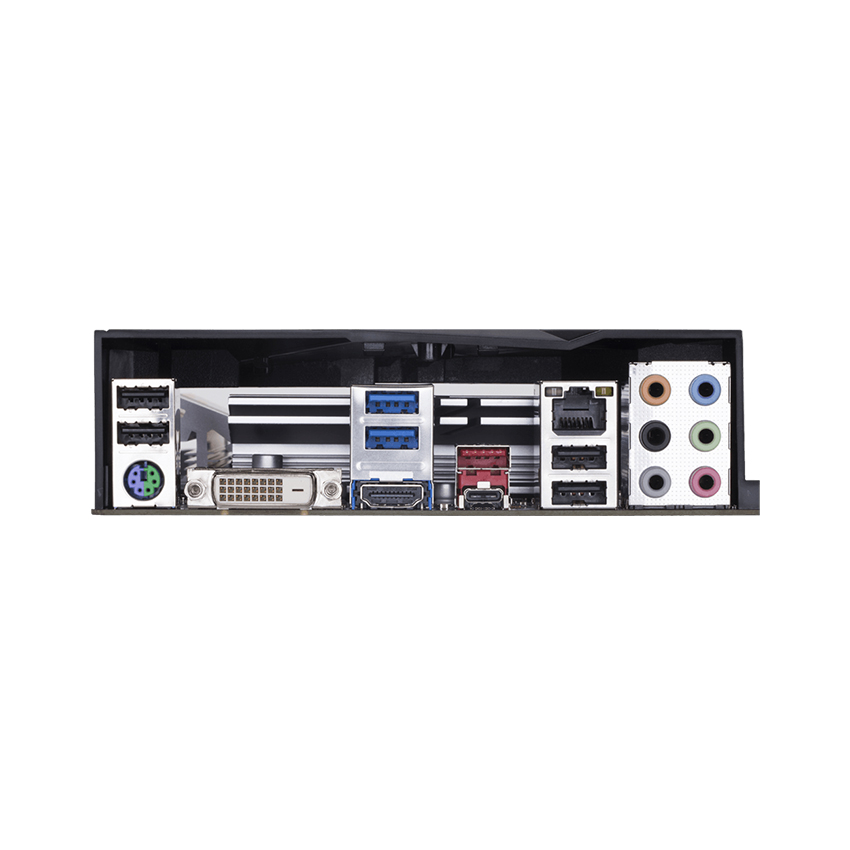

Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 1 x USB 3.1 Gen 2 Type-A port (red) 1 x USB Type-C™ port, with USB 3.1 Gen 1 support 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
Công nghệ độc quyền	Support for APP Center • 3D OSD • @BIOS • AutoGreen • Cloud Station • EasyTune • Fast Boot • Game Boost • ON/OFF Charge • Platform Power Management • RGB Fusion • Smart Backup • Smart Keyboard • Smart TimeLock • Smart HUD • System Information Viewer • USB Blocker • V-Tuner Support for Q-Flash Support for Xpress Install
Phụ kiện đi kèm	Norton® Internet Security (OEM version) cFosSpeed
Hệ điều hành khuyến nghị	Windows® 10 64-bit
Chuẩn kích cỡ	ATX Form Factor

Tên gọi	B360 AORUS GAMING 3
CPU hỗ trợ	Intel® Socket 1151 for 9th, 8th Generation Core™ Processors
Chipset / Socket	Intel® B360
Bộ nhớ (RAM)	4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory • Dual Channel Memory Architecture • Supports Intel® Extreme Memory Profile (XMP)
Công nghệ đa GPU	AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16) • 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_3) 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2) • (1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) * The CNVi connector shares bandwidth with the F_USB2 header. When a WIFI module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.
LAN / Wireless	Intel® GbE LAN chip (10/100/1000 Mbit)
Âm thanh	Realtek® ALC892 codec
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB (RGBW) LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 1 x USB 3.1 Gen 2 Type-A port (red) 1 x USB Type-C™ port, with USB 3.1 Gen 1 support 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
Công nghệ độc quyền	Support for APP Center • 3D OSD • @BIOS • AutoGreen • Cloud Station • EasyTune • Fast Boot • Game Boost • ON/OFF Charge • Platform Power Management • RGB Fusion • Smart Backup • Smart Keyboard • Smart TimeLock • Smart HUD • System Information Viewer • USB Blocker • V-Tuner Support for Q-Flash Support for Xpress Install
Phụ kiện đi kèm	Norton® Internet Security (OEM version) cFosSpeed
Hệ điều hành khuyến nghị	Windows® 10 64-bit
Chuẩn kích cỡ	ATX Form Factor

Mainboard Gigabyte B360 Aorus Gaming 3 (Intel B360/Socket 1151-v2/4 khe RAM DDR4)
