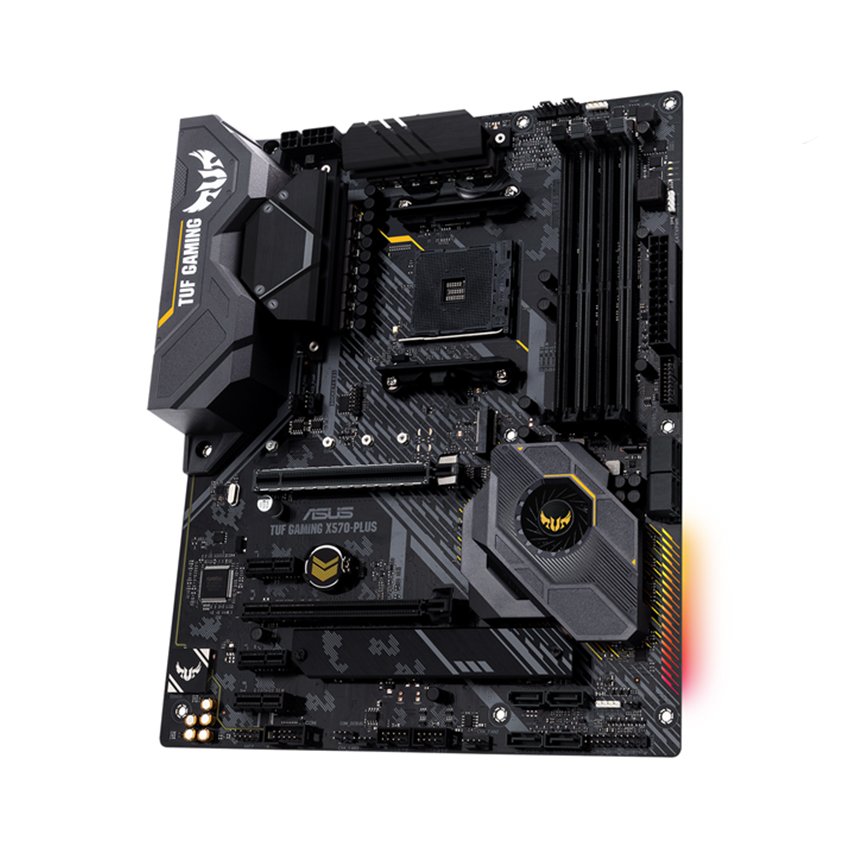

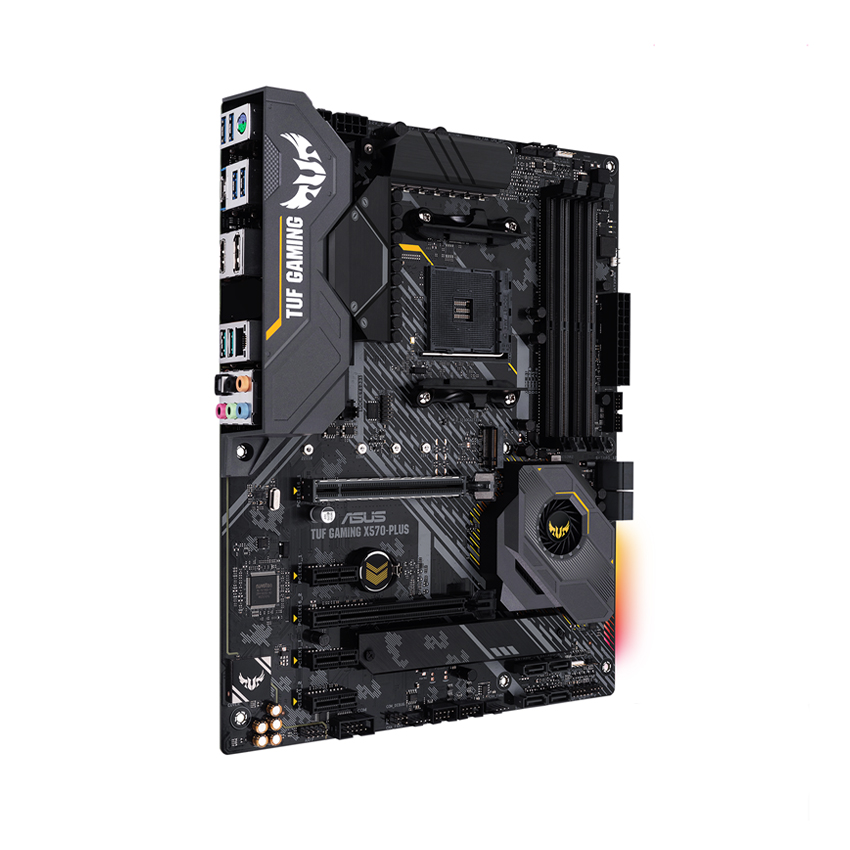

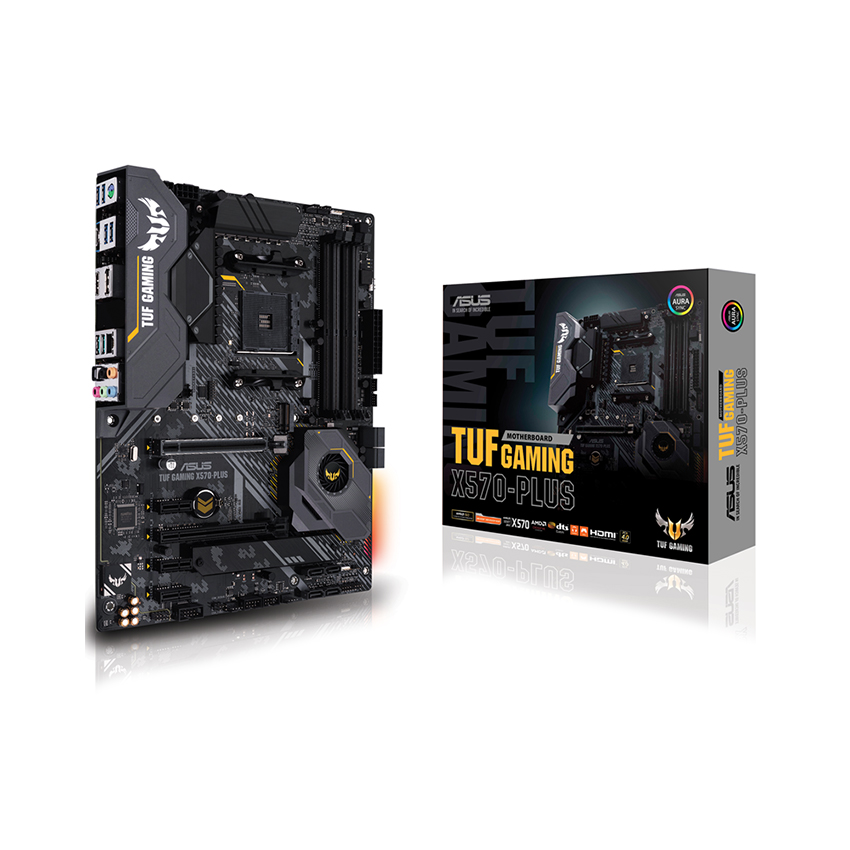

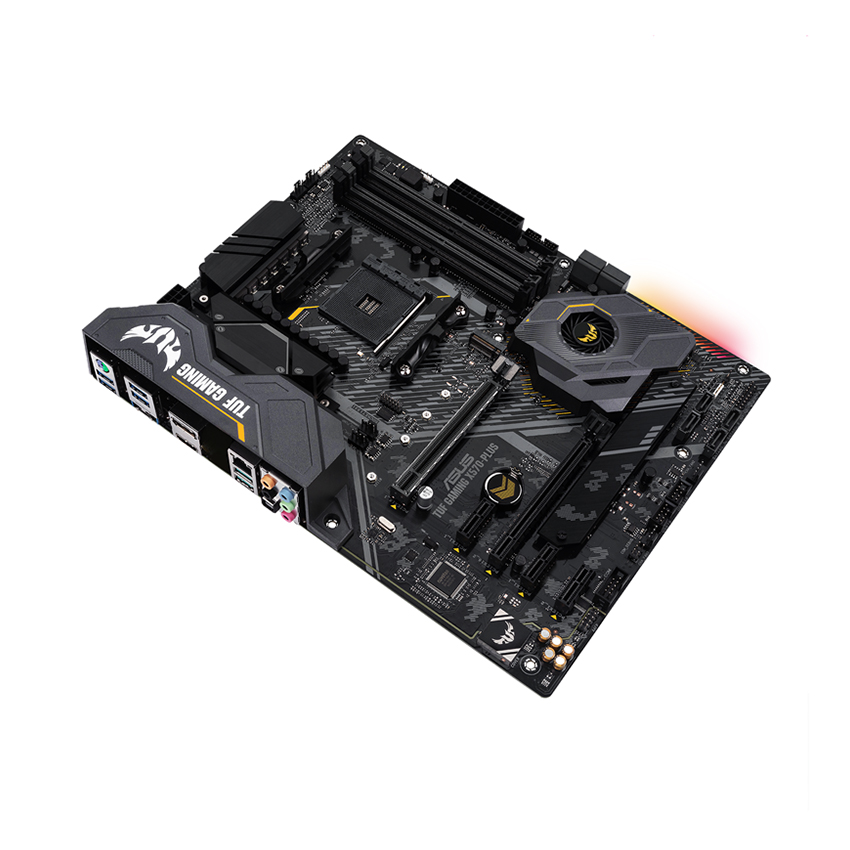

Mainboard ASUS TUF GAMING X570-PLUS (AMD X570/Socket AM4/ATX/4 khe RAM DDR4/Type C/ HDMI/ DP)

Thương hiệu

Asus

Chủng loại

TUF GAMING X570-PLUS

CPU hỗ trợ

Socket AMD AM4 gen 2 và 3

Chipset

AMD X570

Hỗ trợ RAM

3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB,

Hỗ trợ Multi-GPU

3rd and 2nd Gen AMD Ryzen™ Processors AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors Supports AMD CrossFireX™ Technology

Khe mở rộng

3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1

Chuẩn cắm ổ

3rd Gen AMD Ryzen™ Processors :  1 x M.2 Socket 3, with M Key, Type 2242 /2260 /2280 /22110 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™ Processors :  1 x M.2 Socket 3, with M Key, Type 2242 /2260 /2280 /22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset :  1 x M.2 Socket 3, with M Key, Type 2242 /2260 /2280 /22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10

Âm thanh

Realtek® ALC S1200A 8-Channel High Definition Audio CODEC Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

Tính năng Workstation

Intel®C612 Chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel, , 2 at mid-board) / Intel®C612 Chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)6 x PCIe x 16 slot(s) / ASWM Enterprise /ASUS Dr. Power / 12K hours Capacitors / ProCool Power Connector / Q-Code Logger / USB BIOS Flashback / ASUS PIKE SAS upgrade kit(Optional) / ASMB8-iKVM Remote Management Tool

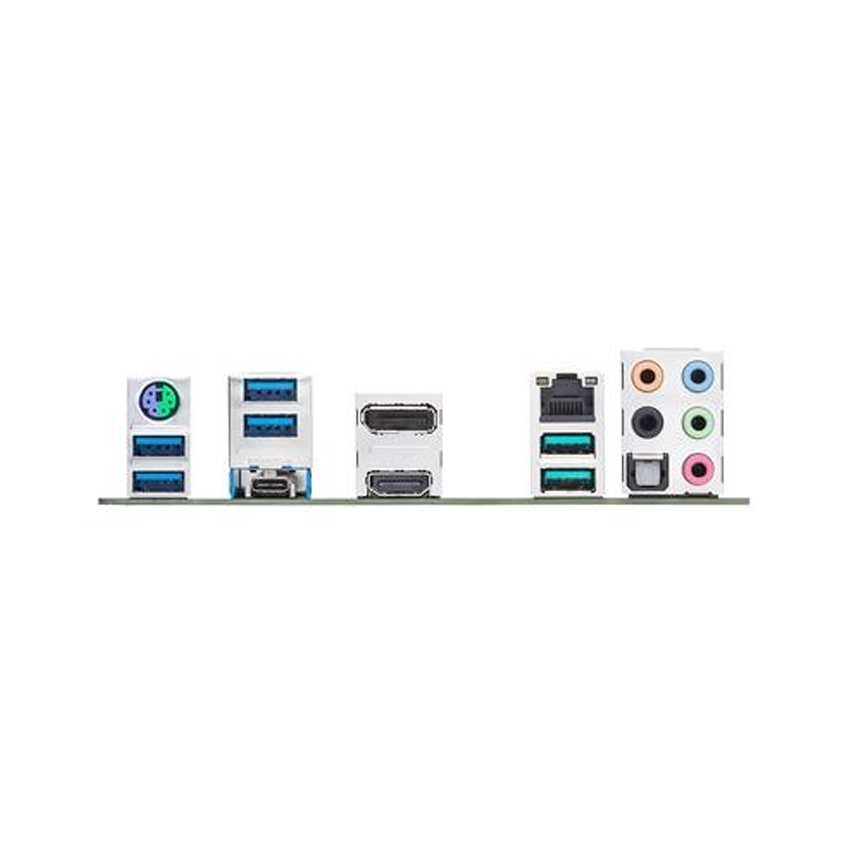

Cổng kết nối

1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)

Cổng kết nối trên main

2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Hệ điều hành hỗ trợ

Windows® 10 64-bit

Phụ kiện

User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s)
