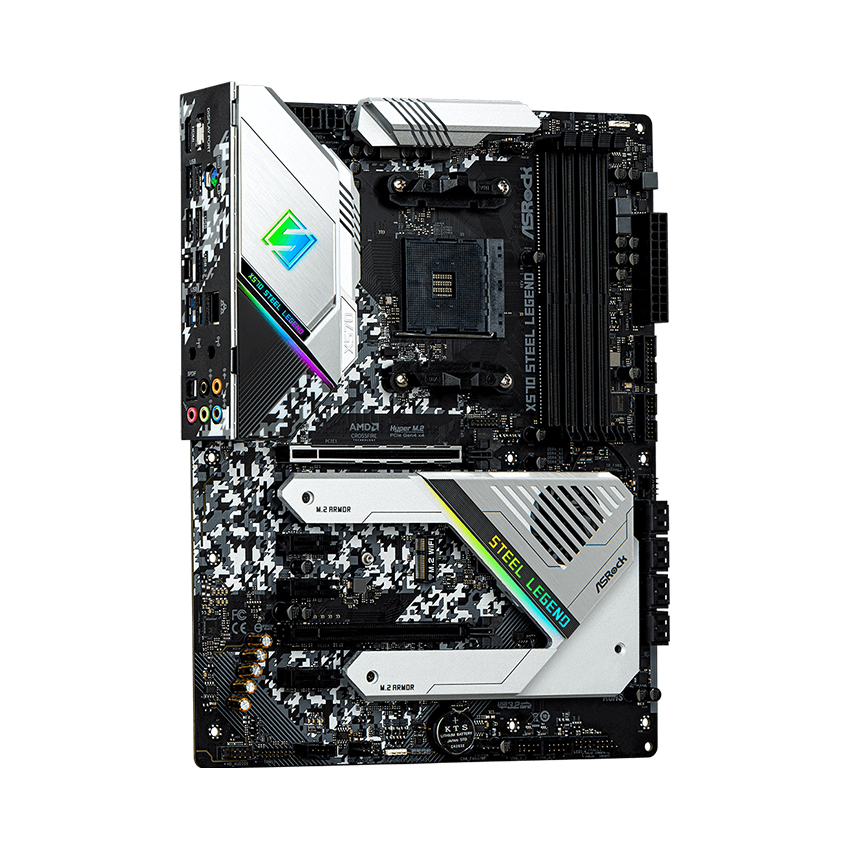

Name: Mainboard ASROCK X570 Steel Legend (AMD X570/Socket AM4/ATX/4 khe RAM DDR4)
Brand: Asrock
SKU: MBAR030

Socket: AM4 hỗ trợ CPU Ryzen thế hệ 3 và 2
Kích thước: ATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: 2 x PCIe 4.0/3.0 x16, 3 x PCI Express 4.0 x1 Slots
Khe cắm ổ cứng: 8 x SATA3 6.0 Gb/s Connectors, 2 x Hyper M.2 Socket

Xem thêm > Thu gọn

Bảo hành:

36 tháng

Giá:

Liên hệ

Đặt mua ngay Miễn phí giao hàng, thanh toán linh hoạt

Trợ giúp

Hướng dẫn mua hàng
Hướng dẫn thanh toán
Chính sách đổi trả hàng
Chính sách mua trả góp
Chính sách bảo hành
Chính sách giao hàng

Customer Is Very Important Person - CIVIP

Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.

Sản phẩm	Mainboard - Bo mạch chủ
Tên Hãng	Asrock
Model	X570 Steel Legend
CPU hỗ trợ	AMD
Chipset	X570
RAM hỗ trợ	4 x DDR4 memory slots, support up to 128GB
Khe cắm mở rộng	2 x PCI Express 4.0 x16 Slots, 3 x PCI Express 4.0 x1 Slots
Ổ cứng hỗ trợ	8 x SATA3 6.0 Gb/s Connectors, 2 x M.2 slot (Key M)
Cổng kết nối (Internal)	1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x AMD Fan LED Header* 1 x RGB LED Header 1 x Addressable LED Header* 1 x CPU Fan Connector (4-pin)** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 1 x AMD LED Fan USB Header 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card only) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

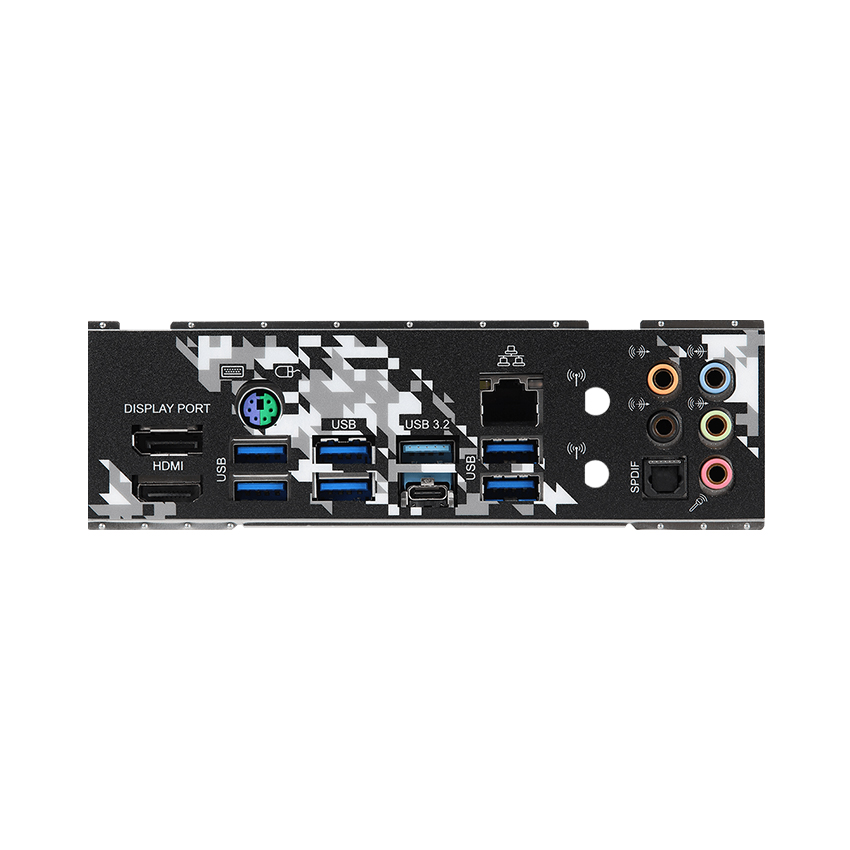

Cổng kết nối (Back Panel)	2 x Antenna Ports (on I/O Panel Shield) 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.2 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) hone
LAN / Wireless	Gigabit LAN 10/100/1000 Mb/s
Kích cỡ	ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm

Sản phẩm	Mainboard - Bo mạch chủ
Tên Hãng	Asrock
Model	X570 Steel Legend
CPU hỗ trợ	AMD
Chipset	X570
RAM hỗ trợ	4 x DDR4 memory slots, support up to 128GB
Khe cắm mở rộng	2 x PCI Express 4.0 x16 Slots, 3 x PCI Express 4.0 x1 Slots
Ổ cứng hỗ trợ	8 x SATA3 6.0 Gb/s Connectors, 2 x M.2 slot (Key M)
Cổng kết nối (Internal)	1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x AMD Fan LED Header* 1 x RGB LED Header 1 x Addressable LED Header* 1 x CPU Fan Connector (4-pin)** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 1 x AMD LED Fan USB Header 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card only) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Cổng kết nối (Back Panel)	2 x Antenna Ports (on I/O Panel Shield) 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.2 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) hone
LAN / Wireless	Gigabit LAN 10/100/1000 Mb/s
Kích cỡ	ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm

Mainboard ASROCK X570 Steel Legend (AMD X570/Socket AM4/ATX/4 khe RAM DDR4)
